Đấm & chết chính xác

Tên: cú đấm chính xác & bộ phận khuôn / khuôn để lắp ráp đồ đạc và dụng cụ làm việc theo dây chuyền

Chất liệu: SUS304, SKD11, HSS…v.v.
Độ cứng: 40-64HRC
Dung sai: +/- 0,002mm đến +/- 0,005

  • MWMP-192003

  • Đúng

  • SKĐ11

  • có hoặc không có lớp phủ màu đen

Tình trạng sẵn có:

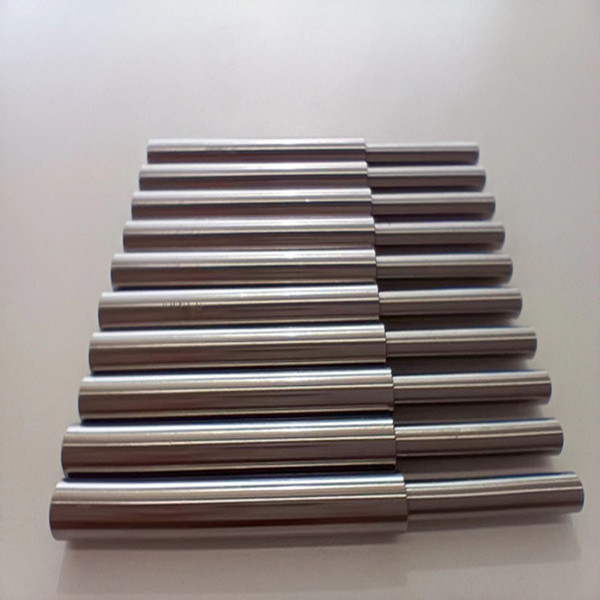

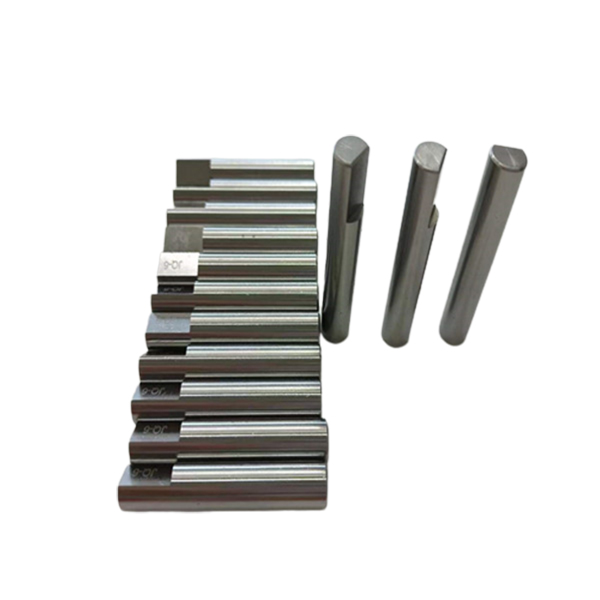

 Precision punches&dies application

  • These pictures and drawings are our customized products. It shows our supply ability. Due to the Intellectual Property, it's only for reference.

  • Assemble line work fixture& tooling devices and components are the key back up for the factory automation processing.

  • Precision punches & dies mould/die parts tooling are used to help to assemble and install the different types of components together-metal or non-metal components, parts and other sections of ingredients into a whole final product. They are important assemble line work fixtures and toolings.

  • We can produce various function's precision die/mould work tools according to your drawings.

Precision punches&dies customization

  • Various of metal materials with different surface treatments are adopted to satisfy with your requirements and keep efficient running of your production line. Since the work fixture tooling and parts are closely connected with the practical production scenes and conditions, we produce customer orientated and non-standard OEM products.

  • You need to provide clear drawings and requirements so as to for our engineers understand thoroughly.

  • Our regular service scope as following but not limited, up to your drawings:

Assemble Line Work Fixture and Tooling,

Altimetric Survey Mechanism Tooling,

Height Detection Mechanism Tooling,

Inspection Assemble Line Work Fixture and Tooling,

Cutting Assemble Line Work Fixture and Tooling,

Testing Assemble Line Work Fixture and Tooling,

Measuring Assemble Line Work Fixture and Tooling…

Non-Standard Mechanical Parts for Assemble Line,

Assemble Line Punch,

Assemble Line Head Punch,

Assemble Line Connecting -Adapter Parts,

Assemble Line Mounting Plate Components,

Assemble Line Metal Gripper,

Assemble Line Guide Sleeves,

Assemble Line Orientation Inserts,

Assemble Line Flange Connector parts,

Assemble Line Device,

Orientation Parts for Assemble Line,

Measurement Parts for Assemble Line,

Non-Standard Inspection Parts,

Non- Standard Metal Cutters for Assemble Line…

Precision punches&dies mould/die parts for assemble line work fixture and tooling features

  • Good consistency, stable quality, precision tolerances +/-0.002mm to +/-0.005mm.

  • Almost zero repair rate and zero defective products, all replacement or repair for free due to our fault within 1 year warranty period.

  • Quality control assurance.

  • Fast after-sale respond.

Precision punches&dies mould/die parts packaging

Inner: bubble bag, PE bag or plastic seal with anticorrosive oil plus outer carton box, or other safe package.

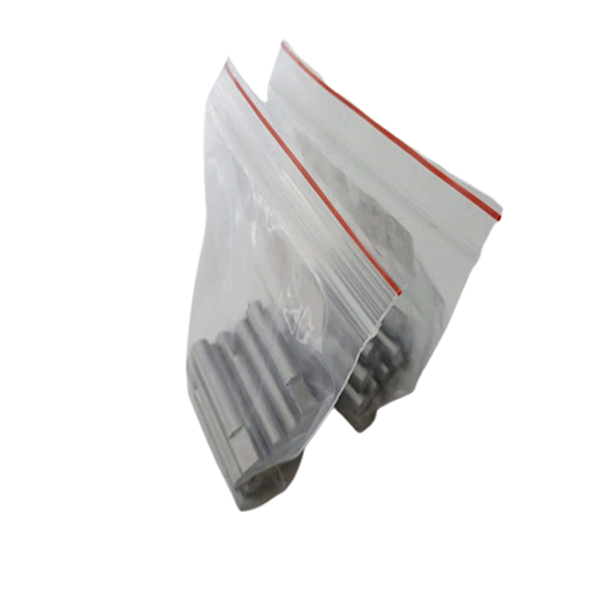

packing die punch-MWMECHPARTS

Precision die parts work fixture and tooling surface treatment

You may choose surface treatment according to your needs. Below are some usual methods we use.

surface treatment-MWMECHPARTS

Our other case of precision dies parts for assemble line work fixture and tooling

1)Precision edge closing die

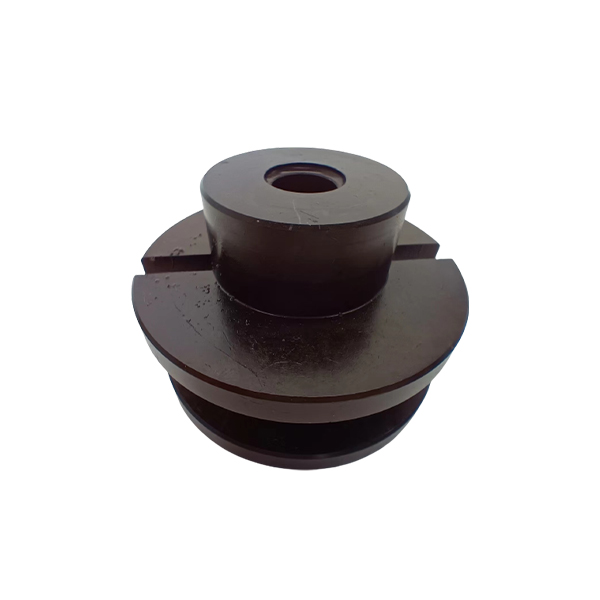

customized precision die parts for assembling-MWMECHPARTS

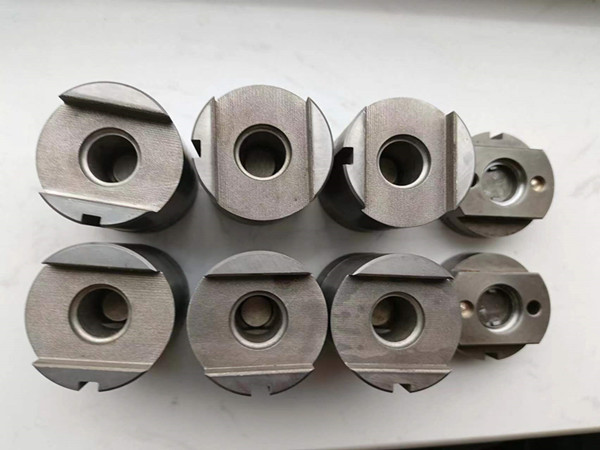

customized precision die for assembling-MWMECHPARTS

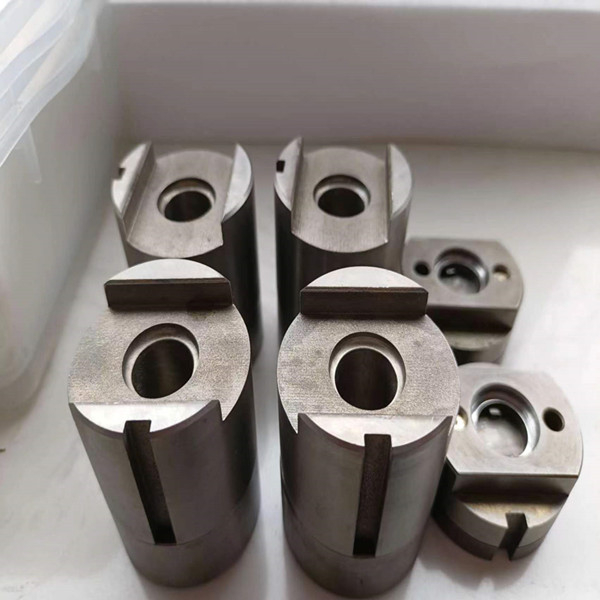

customized precision die for assemble line tooling-MWMECHPARTS

2) Precision forming/figurate die

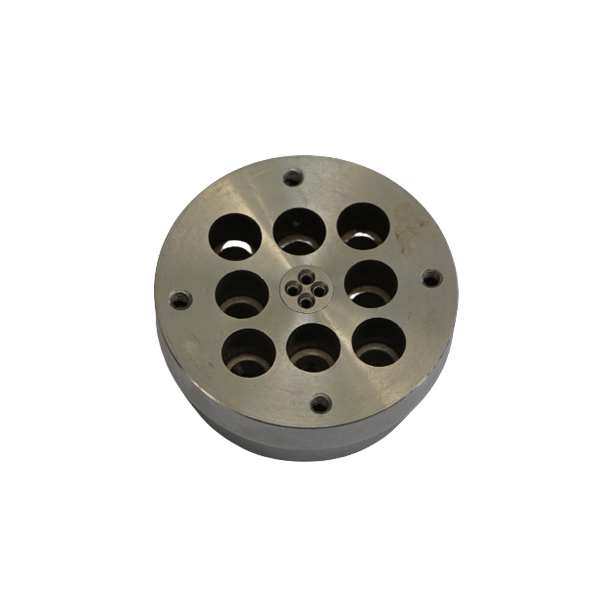

customized work fixture and tooling mold cavity-MWMECHPARTS


Q: What service can you do?

A: OEM/ODM. Free samples available after price confirmed, but you need to share the sample freight. We produce the parts per customers'drawing or sample. Concerning the protection of customers'intellectual property, we don't sell our customers'same product to the third party.

Q: What data should the customer provide for a precise quotation?

A: The drawings or samples, quantity, tolerance, standard, material, surface finish, other special requirements, etc.

Q: What're your delivery methods?

A: DHL, EMS, UPS, land transport or sea freight available.

Q: How do you assure the quality control?

A: Full inspection with test report and material composition certificate for each order and 1-year after-sale service for free repair or replacement for deficit products. Almost zero repair rate and defective products all replacement or repair for free.

Q: How long is your lead time?

A: 10-30days up to the quantity.

Q: what surface treatments can you deal with?

A: Titanium nitride (TiN), TiCN, titanium plating, blackening, carburize, zinc plating, zinc coating,  galvanization, chrome plate, etc.

Q: what's your payment term?

A: T/T, L/C, western Union, PayPal, etc.
